ELODE · Electro-osmosis dehydrator · 8+ patents

Half your sludge in 3 minutes.
No heat.

ELODE further dries sludge from your press or centrifuge — using electrical polarity, not heat, to shock the water out.

55%+

typical weight cut in one 3-minute pass
200–250 kWh

to remove 1 ton of water — 1/5 of thermal drying energy
2 min

startup — no preheating or furnace

Cuts cake weight in half or better on 90% of sludges we've tested

Real cake from customer pilot tests

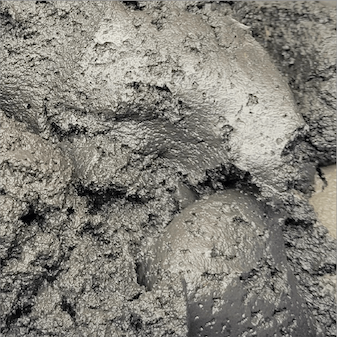

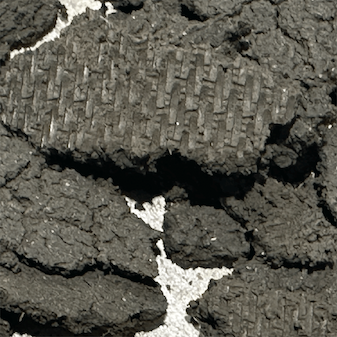

Municipal

15%DS 45%DS

Before

After

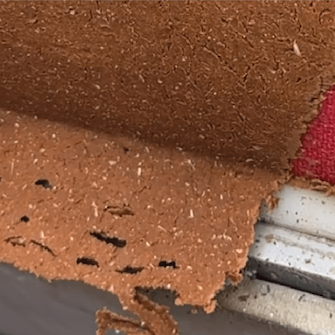

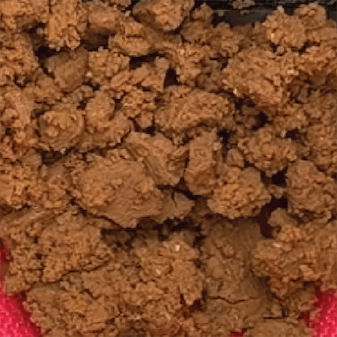

Food

14%DS 34%DS

Before

After

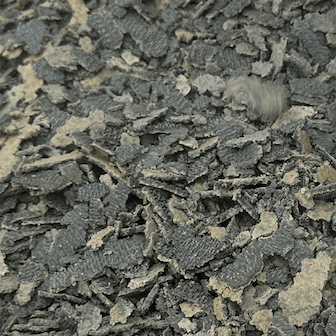

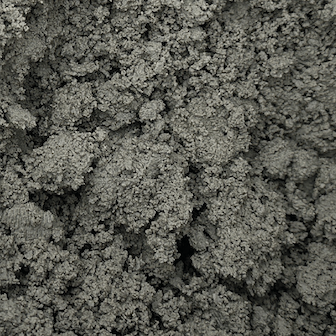

Chemical

19%DS 44%DS

Before

After

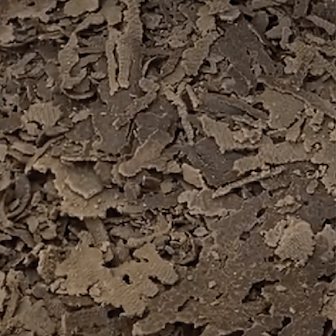

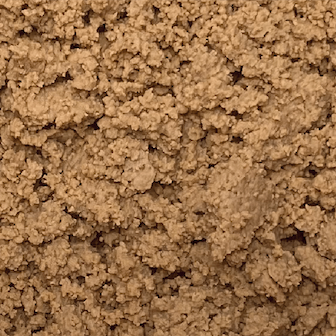

Pharmaceutical

9.5%DS 42%DS

Before

After

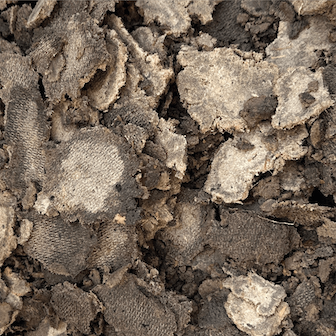

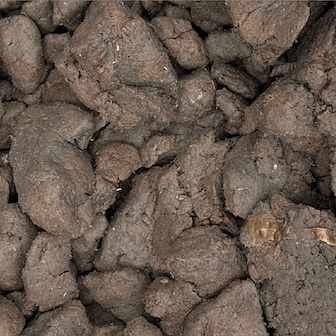

Paper & Pulp

14%DS 40%DS

Before

After

ELODE runs today at Henderson, KY (since 2023) and at two new installs in Wisconsin, with more in the pipeline for the coming years. See references →

Other applications:
Dairy
Breweries & Malt
Textile
Manure
Drilling Mud
Ethanol
and more

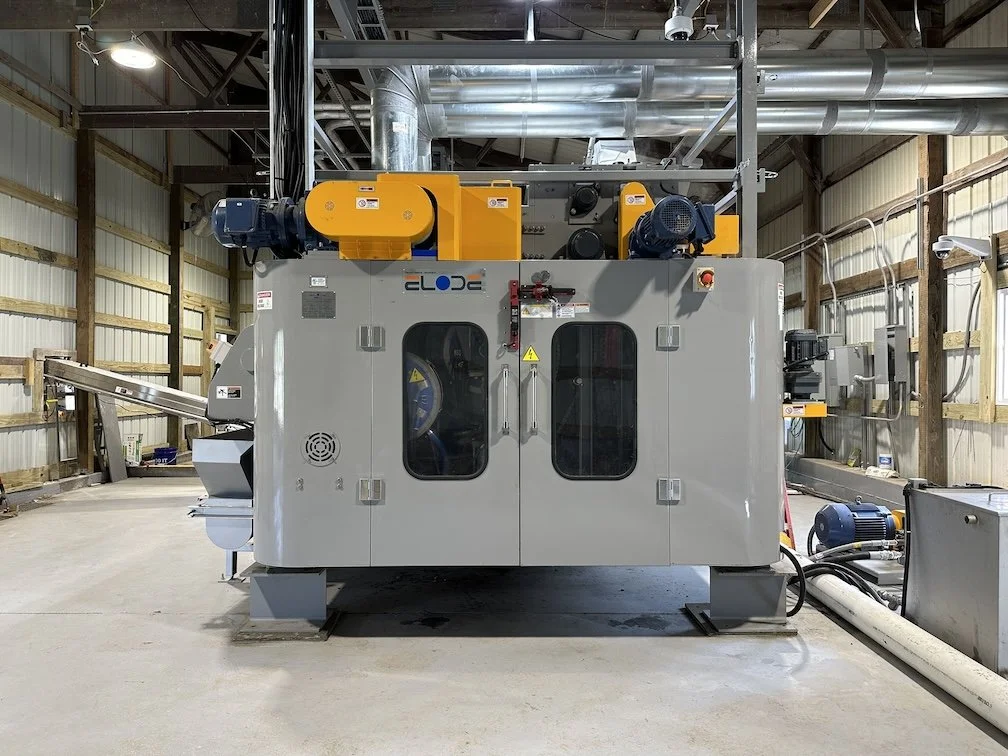

Henderson Water Utility · Kentucky · ELODE · Since 2023

"It really does reduce our solids by 60% in 3 minutes."

— Josh, Superintendent

Watch ELODE dry 30 tons down to 11, daily →

Want to test your sludge?

Send a few 5-gallon buckets — we'll run your sludge on a commercial unit in New Jersey, or bring a trailer-mounted unit to you.

Why no heat?

What if you didn't have to boil water when drying sludge?

Thermal dryers don't just heat water — they turn it into steam. That phase change, the latent heat of vaporization, costs more energy than all the heating before it.

ELODE uses electro-osmosis to move water out of the sludge as a liquid — no phase change, no wasted energy.

Energy required to heat 1 kg of water

414 kJ
2,260 kJ

0 – 99°CHeating
0 – 100°CHeating + boiling

+4.5×for the last 1°C

How ELODE works

ELODE process diagram: sludge cake enters between the anode drum and cathode caterpillar track, water is driven out by electro-osmosis, and drier cake discharges

1

Feed

Dewatered cake spreads evenly across the 3-meter belt.
2

Dry

DC fields pull water out; no heat, instant separation.
3

Discharge

Cake leaves at half the weight or better, and continues to dry as it is conveyed away.

Read: how does ELODE work? →

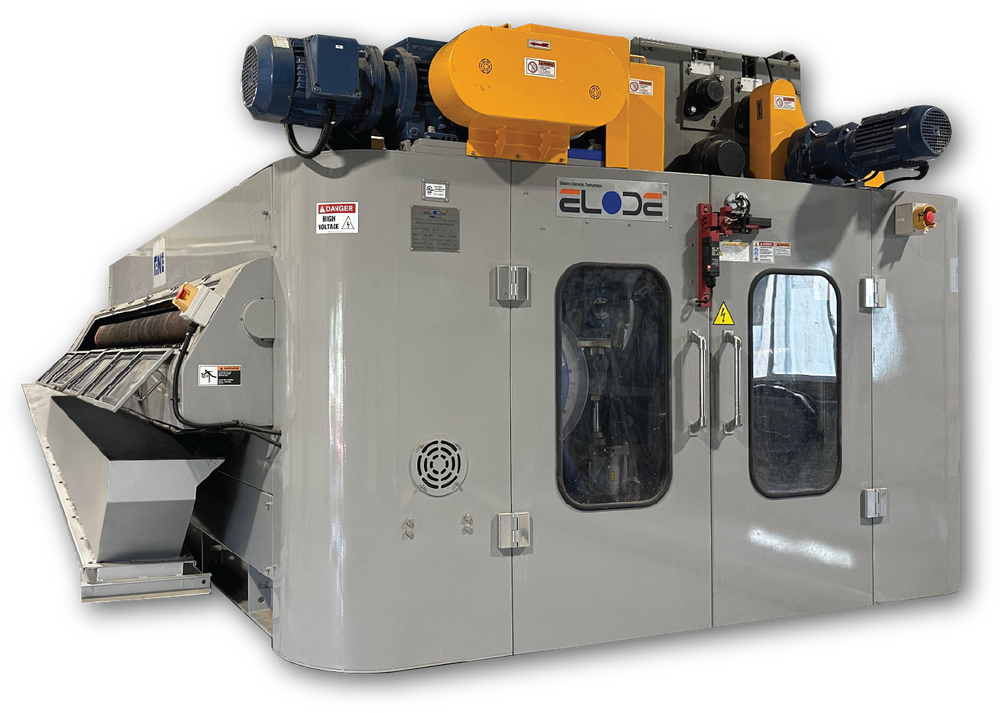

ELODE 3000 specifications

ELODE 3000 specifications
Feed rate	Up to 36 wet tons/day
Sludge input width	2,800 mm (8 ft)
Input cake	10–30%DS (typical)
Typical belt speed	0.8–1.2 m/min (3–4 ft/min)
Output cake	30–50%DS (65% max observed)
Wash water usage	13 gal/min (typical)
Power	150–180 kW · 3-phase, 480 VAC
Compressed air (max)	1.5 SCFM at 100 psi
Energy per ton of water removed	200–250 kWh
Sludge conductivity range	2,000–13,000 µS/cm
Machine dimensions (L × W × H) & weight	15 × 10.5 × 8.5 ft · 22,000 lbs
Control panel dimensions (L × W × H) & weight	4 × 9.5 × 6.5 ft · 5,000 lbs

Connections	Power · wash water · compressed air · 6" drain · 14" vent ducts

Every sludge is different – specifications are subject to change to best suit your application.

How it compares

ELODE 3000EVD 3000Typical Dryer

ELODE 3000 compared with EVD 3000 and a typical dryer
	ELODE 3000	EVD 3000	Typical Dryer
Typical throughput	36 wet tons/day	3.3 wet tons/day	50 wet tons/day
Drying performance	Up to 65%DS	Up to 90%DS+	Up to 90%DS+
Cost of entry	3×	1×	10.5×
Footprint	11 × 15 ft	15 × 7.5 ft	80 × 12 ft
Energy to remove 1 ton of water	200–250 kWh	300–400 kWh	1,200 kWh
Additional equipment	Minor	Minor	Several required
Maintenance	Mid	Low	High

See the full dryer comparison →

Better together

Need Class A or higher solids? Add the EVD.

ELODE cuts most of the weight for a fraction of the energy. Feeding that drier cake into the EVD means a smaller unit, less runtime, and lower cost per ton to reach 90%DS+.

Press · 15%DS
ELODE · 35–45%DS
EVD · 90%DS+

See the EVD →

Stop hauling water.

Test your sludge on a commercial-scale unit — see your numbers before you buy.
